Fiberglass Flagpoles by Atlantic Fiberglass

Hinged Base Flagpoles | Ground Sleeve Flagpoles | Yardarms

Design and Beauty

All of our fiberglass flagpoles are molded in one piece, using the beautiful Greek Entasis taper design-the classical shape of a candle.

Maintenance Free

Our fiberglass flagpoles will not pit, corrode or rust. This is extremely important near salt water or in rugged weather conditions. Unlike wood flagpoles, that can rot, or aluminum flagpoles that may discolor, our fiberglass flagpoles have an ultra-hard, gel-coat finish that is impervious to all weather conditions.

Safety

Fiberglass flagpoles will not conduct electricity like aluminum or steel flagpoles. No ground wires. No lightning worry. Easy flagpole installation!

Colors

Our Standard fiberglass flagpole has a brilliant white, pre-cast gel-coat finish. Other flagpole colors are available on special request. All fiberglass flagpoles have the same dura-hard, fade-free, weather resistant finish.

Revolving Truck

All fiberglass flagpoles come with a special designed, high quality, revolving truck as standard equipment.
Call and see about local Flagpole installation.

How to Install Snap Hooks

Hinged Base Fiberglass Flagpole

The heavy duty hinged ground attachment offers the homeowner or professional installer easy flagpole installation. One person can raise or lower a 40-foot fiberglass flagpole. The easy-to-use leveling system makes installation simple and fast.

Hinged Base Features

Hinged Base Flagpole Features

Attractive, strong, hot-dipped zinc galvanized steel base.
Available in 20/25/30/33/35/40/50/60 foot lengths
Can be easily taken down and moved to a new home or building location yet offers more security than a ground sleeve flagpole.
Mounting kit comes complete with all fittings, hardware and anchoring rods. Includes halyard, cleat, flag attachments, revolving truck and finial. Nothing extra to purchase.

Hinged Base Options

Hinged Base Flagpole Options

All hinged base flagpoles can be purchased with the new, innovative Internal Halyard System. The standard external system has the halyard outside the flagpole and ties to a cleat. The internal Halyard System uses a special designed winch of high tensile steel, stainless rollers and brass bushings mounted inside the pole to raise and lower the flag. No exposed halyard to slap or be exposed to the elements. An attractive nylon covered counterweight is provided for attachment to the flag to keep it in proper position.
Flash Collar

Hinged Base Downloads

Hinged Base Flagpole Flatsheets/Downloads

It appears you are on a mobile device. You will need to scroll to see the full table or request Desktop Version in your mobile browser.

Model # (Scroll on Mobile)	HB20	HB25	HB30	HB33	HB35	HB40	HB50	HB60
ABOVE GROUND HEIGHT (FT)	20	25	30	33	35	40	50	60
TOTAL LENGTH (FT)	20	25	30	33	35	40	50	60
BUTT DIAMETER (IN)	4.5	4.5	4.5	5.5	5.5	5.5	7	7
TOP DIAMETER (IN)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
FLAGPOLE WEIGHT (LB)*	30.8	37.4	44.0	61.6	65.4	74.8	198	231
BALL DIAMETER (IN)	5	5	6	6	6	6	8	8
HALYARD (MM)	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
FLASH COLLAR (IN)	14	14	14	14	14	14	-	-
STAND. FLAG SIZE (FT)	3 x 5	4 x 6	5 x 8	5 x 8	5 x 8	6 x 10	8 x 12	10 x 15
MAX FLAG SIZE (FT)	4 x 6	5 x 8	6 x 10	6 x 10	8 x 12	10 x 15	10 x 15	12 x 18
OUR PRICE EXTERNAL	$1195.00	$1295.00	$1595.00	$1795.00	$2150.00	$2460.00	$6400.00 NOT AVAILABLE ONLINE	$7400.00 NOT AVAILABLE ONLINE
OUR PRICE INTERNAL	$1549.00	$1649.00	$1995.00	$2095.00	$2395.00	$2595.00	$7400.00 NOT AVAILABLE ONLINE	$8400.00 NOT AVAILABLE ONLINE
OPTIONAL FLASH COLLAR	$49.00						ALUM. FLASH COLLAR $160.00 NOT AVAILABLE ONLINE
*Freight for Fiberglass Flagpoles: Fuel Surcharges may apply. Call for a quote. West of the Mississippi, Hinge Base poles, Larger poles or multiples-Please call 800-580-0009 x202. Freight quotes are an estimate only. Actual shipping charges may increase due to any accessorial charges that may occur including: notification calls, limited access charges, over dimensions fees, residential fees and fuel surcharges. Due to carrier limitation fiberglass flagpoles 30' and longer may be shipped in two sections.

Ground Sleeve Flagpoles

This is the same high-quality pressure-molded fiberglass flagpole without the hinged base attachment. perfect when quality and economy are critical.

Call and see about local Flagpole installation.

Ground Sleeve Features

Ground Sleeve Flagpole Features

Available in 20/25/30/35 foot lengths
Revolving truck is standard
Mounting kit comes complete with a specilly designed ground sleeve and everything necessary for installation exept the concrete and the hole!. Finial included.

Ground Sleeve Options

Ground Sleeve Flagpole Options

Flash Collars
Colors

Ground Sleeve Downloads

Ground Sleeve Flatsheets/Downloads

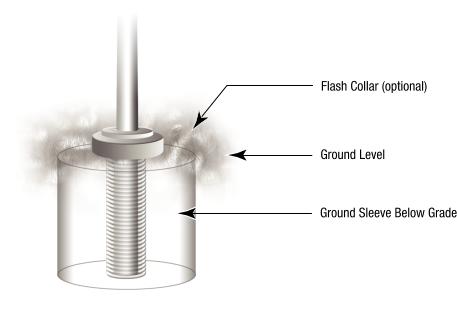

Ground Sleeve Schematics

It appears you are on a mobile device. You will need to scroll to see the full table or request Desktop Version in your mobile browser.

Model # (Scroll on Mobile)	GS20	GS25	GS30	GS35
ABOVE GROUND HEIGHT (FT)	20	25	30	35
TOTAL LENGTH (FT)	22	27.5	33	39
BUTT DIAMETER (IN)	4.5	4.5	5.5	5.5
TOP DIAMETER (IN)	2.5	2.5	2.5	2.5
FLAGPOLE WEIGHT (LB)	26.5	33.3	57.8	69.5
BALL DIAMETER (IN)	5	5	6	6
HALYARD (MM)	5.5	5.5	5.5	5.5
STAND. FLAG SIZE (FT)	3 x 5	4 x 6	5 x 8	5 x 8
MAX FLAG SIZE (FT)	4 x 6	5 x 8	6 x 10	8 x 12
FLASH COLLAR (IN)	14	14	14	14
OUR PRICE EXTERNAL (ONLY)	$699.00 NOT AVAILABLE ONLINE	$799.00 NOT AVAILABLE ONLINE	$1549.00 NOT AVAILABLE ONLINE	$1895.00 NOT AVAILABLE ONLINE
CAM CLEAT INTERNAL FLAGPOLE	$1019.00 NOT AVAILABLE ONLINE	$1119.00 NOT AVAILABLE ONLINE	$1869.00 NOT AVAILABLE ONLINE	$2215.00 NOT AVAILABLE ONLINE

Yardarms

Yardarms allow you to fly additional flags from your pole. The 6.5 foot yardarm fits 20' - 25' poles, the 8 foot works with 30' and 33' poles and the 10 foot works with the 35'. 40' and 50' poles. All hardware is included. Freight will be calculated and added to your order.

NOT AVAILABLE ONLINE
